The Network page (Status/Control → Network) is where you set up networking so your FPP devices and controllers can all communicate as needed. Networking works similarly whether wired or wireless, and the two work together. The page has three tabs: Interface Settings, Global Network Settings (host and DNS), and Tethering.

Network — Interface Settings.

Note

This page shows some Advanced Level settings that you probably won't use. see more information below.

Because there are so many ways to configure a network, these settings cause many people difficulty. The basic setup earlier in this manual will get you running, though it may not be the best long‑term arrangement; the sections below should give you a better understanding for your situation. For deeper background on IP addressing, see Networking → Overview.

If you want a temporary network configuration you can use the Wired on Home Network configuration so that you can update the software and make final configurations before using FPP in your final network configuration. This would be a good configuration for testing purposes as well. But if your FPP device doesn’t have an Ethernet port but has a Wi-Fi adapter then Separate Show Network might be a better option.

There is a good video here and Keith Westley, one of the xLights developers, has a good video as well here

Interface Settings

Depending on the device, FPP may have up to two built‑in network interfaces (more if you add adapters, though that is uncommon): eth0 for wired Ethernet and wlan0 for wireless. If you have both, configure each separately.

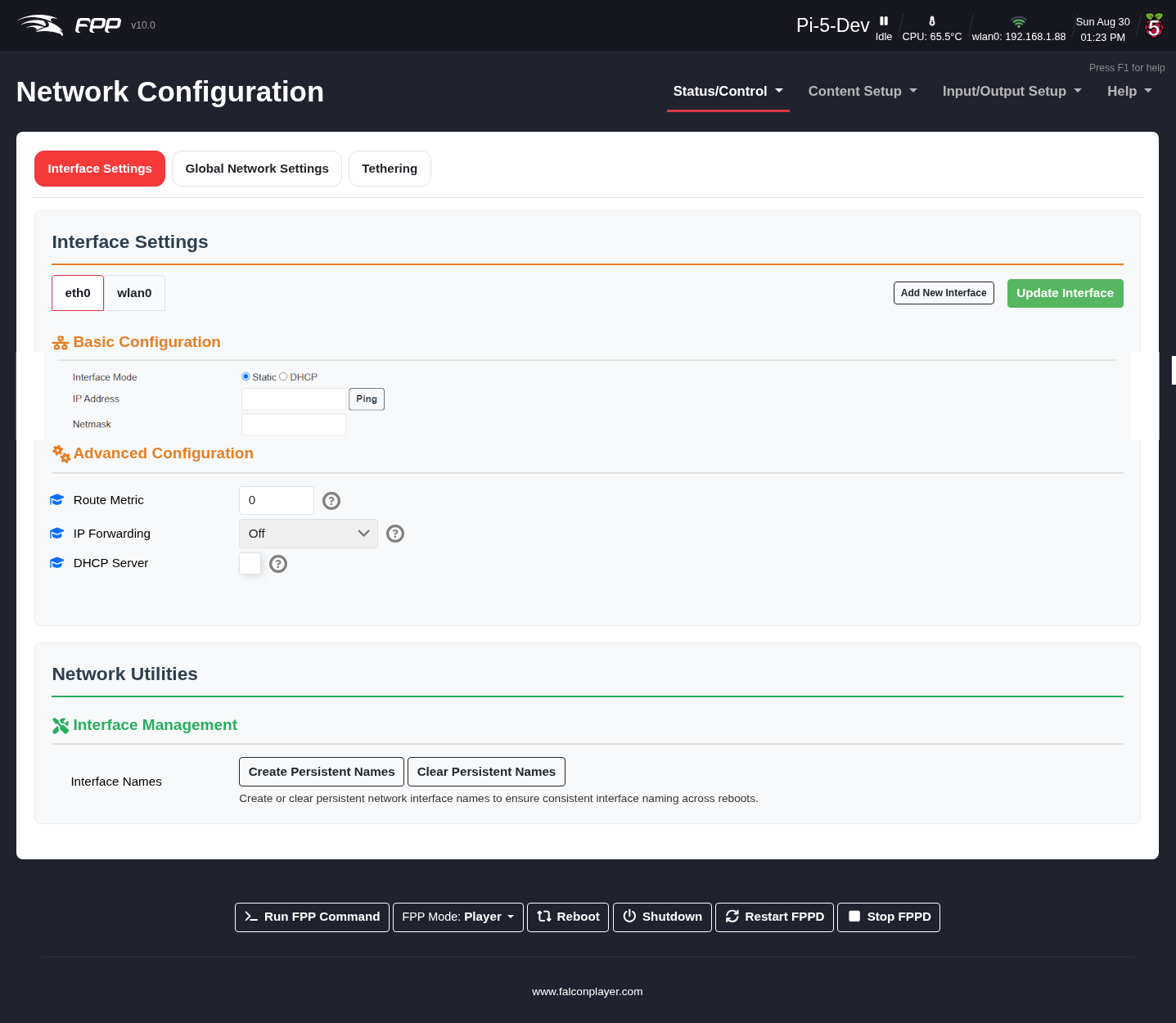

eth0 Interface Network — eth0 Interface Settings.

  • Interface Mode:

    • Static – you assign the IP address. You must ensure each address is unique and does not clash with one your router has already handed out via DHCP. You also need to make sure that your router does not assign this IP address to another device down the road. Many routers assign DHCP addresses from the low end of the range (not always), and some let you limit the DHCP range to avoid conflicts.
    • DHCP – your router assigns and manages the IP address and gateway. This is the easiest method, but your router may not retain the IP address if the device is disconnected for a long time (you can usually still reach FPP by host name), and the interface must be on a network with a DHCP server.

  • IP address – unique to this device/interface, in the same subnet as the network it talks to (usually the first three number groups). The Ping button can be used to check whether an address is already in use.

  • Netmask – defines the network size; most consumer networks use 255.255.255.0.

Note

If you use both interfaces they should be on different subnets, and only one interface should have a gateway — normally the one connected to your home network.

Create Persistent Name-If you are using more than one Ethernet interface (common for users with a Color-Light board) and you need the Ethernet adapter to keep the configuration order, then you can create a Persistent Name. The best practice would be:

  • Power down the FPP device.
  • Make sure that only the primary Ethernet interface is installed.
  • Power up the FPP device.
  • Plug in the USB Ethernet adapter.
  • Configure the eth0 and eth1 devices
  • Click on Update Interface
  • Click on Create Persistent Name

This will save your eth0 and eth1 configurations so that they will load up in the correct order.

  • Route Metric – leave at default for most setups. If more than one interface has a gateway (unusual), give your primary interface a lower number. (This is only visible with an Advanced or higher level setting in the UI tab.)

  • IP Forwarding – This is typacally used when FPP connects to Wi‑Fi and also feeds a controller/switch over Ethernet and you are not using a Proxy Host (not needed with a cape/hat or in standalone mode):

    • Off – no forwarding.
    • Forwarding – forwarding within the local network only; forwarded devices may not have internet access.
    • Masquerading/NAT – forwarding with NAT, giving forwarded devices internet access without complex static routing. Configure this on the interface connected to your home network. (This is only visible with an Advanced or higher level setting in the UI tab.)

Note

This replaces the old "Enable Routing between network interfaces" option on the former Interface Routing tab and is typically used on the wlan0 interface NOT the eth0

  • DHCP Server – let FPP hand out IP addresses to connected devices — useful on a Separate Show Network with no router. Only one device on a network should issue DHCP, and it must have a static IP. (This is only visible with an Advanced or higher level setting in the UI tab.)

Caution

If you connect this interface to your home network with the DHCP server enabled, devices may get incorrect addresses. Assigned devices appear under Static Leases, where you can create a reservation. (This is only visible with an Advanced or higher level setting in the UI tab.)

  • DHCP Pool Offset / Size – the starting address and number of addresses the DHCP server may assign. (This is only visible with an Advanced or higher level setting in the UI tab and with DHCP enabled.)*

Note

In FPP 10 — a change that comes from the move to a newer Debian base — DHCP leases survive a reboot. Restarting FPP no longer clears the leases it has handed out, so a device that had an address keeps it. Lease times are set to sensible values by default. To start over with a clean pool, run FPP Settings → System → Reset FPP Config with Network Config Files ticked; the saved leases are then cleared on the next reboot rather than immediately, which avoids disturbing addresses on interfaces that are still in use.

wlan0 Interface

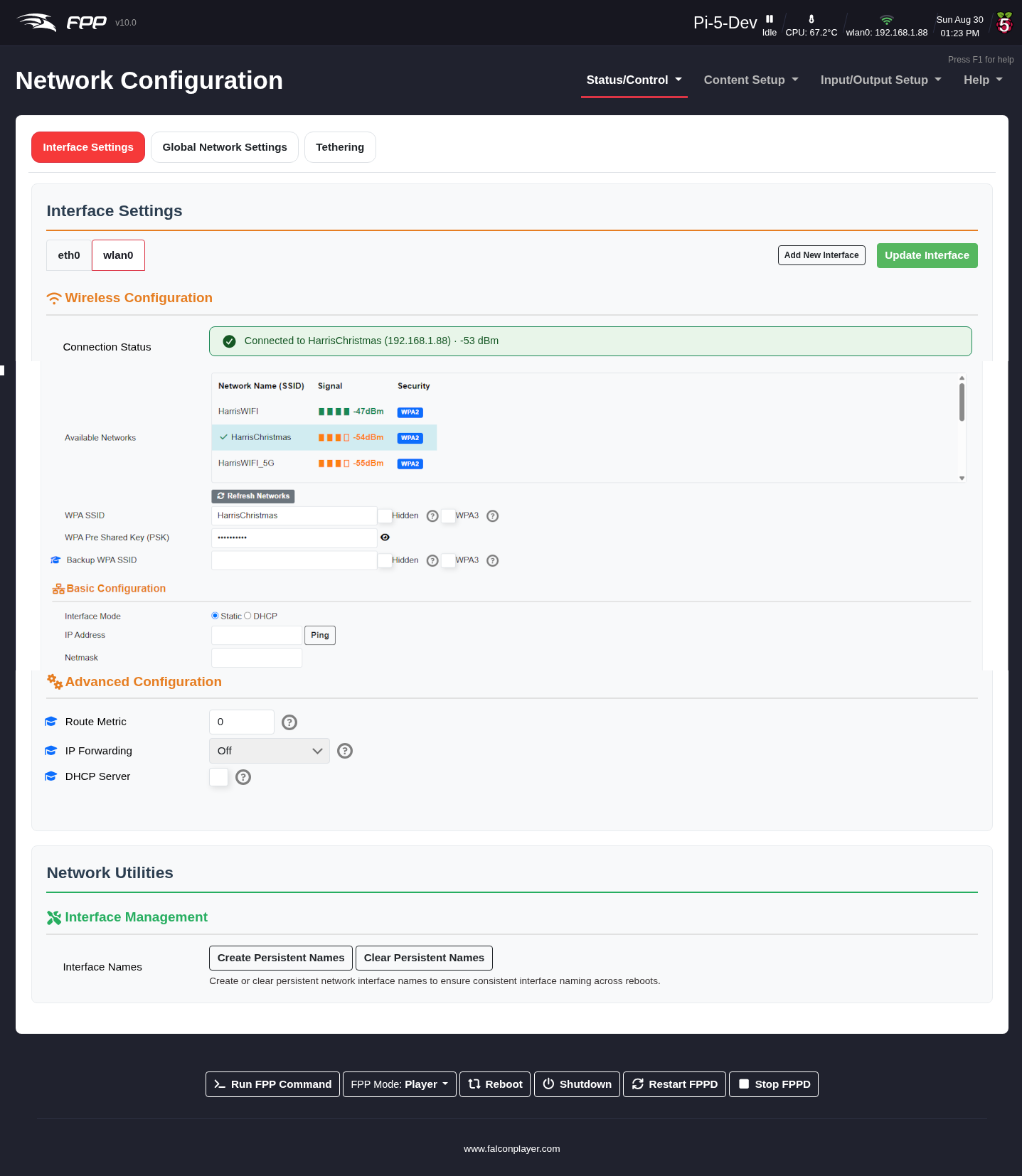

Network — Interface Settings, wlan0.

This page will have information about your current Wi-Fi connection such as Connection Status It will also list Available Networks if your Wi-Fi adapter can scan the networks.

  • WPA SSID – your wireless network name (tick Hidden if you are connecting to a hidden SSID).
  • WPA Pre‑Shared Key – the password; use the eye icon to reveal it and check it is correct.
  • Backup WPA SSID / PSK – an alternate network that FPP tries if it cannot reach the primary. (This is only visible with an Advanced or higher level setting in the UI tab.)
  • Route Metric – leave at default for most setups. If more than one interface has a gateway (unusual), give your primary interface a lower number. (This is only visible with an Advanced or higher level setting in the UI tab.)
  • IP Forwarding – This is typacally used when FPP connects to Wi‑Fi and also feeds a controller/switch over Ethernet and you are not using a Proxy Host (not needed with a cape/hat or in standalone mode):
    • Off – no forwarding.
    • Forwarding – forwarding within the local network only; forwarded devices may not have internet access.
    • Masquerading/NAT – forwarding with NAT, giving forwarded devices internet access without complex static routing. Configure this on the interface connected to your home network. (This is only visible with an Advanced or higher level setting in the UI tab.)

Note

This replaces the old "Enable Routing between network interfaces" option on the former Interface Routing tab and is typically used on the wlan0 interface NOT the eth0

  • DHCP Server – let FPP hand out addresses to connected devices — useful on a Separate Show Network with no router. Only one device on a network should issue DHCP, and it must have a static IP.

Caution: If you connect this interface to your home network with the DHCP server enabled, devices may get incorrect addresses. Assigned devices appear under Static Leases, where you can create a reservation. (This is only visible with an Advanced or higher level setting in the UI tab.)

  • DHCP Pool Offset / Size – the starting address and number of addresses the DHCP server may assign. (Advanced, with DHCP enabled.)

Note: In FPP 10 — a change that comes from the move to a newer Debian base — DHCP leases survive a reboot. Restarting FPP no longer clears the leases it has handed out, so a device that had an address keeps it. Lease times are set to sensible values by default. To start over with a clean pool, run FPP Settings → System → Reset FPP Config with Network Config Files ticked; the saved leases are then cleared on the next reboot rather than immediately, which avoids disturbing addresses on interfaces that are still in use.

  • Update Interface – saves the settings for the current interface. Click it before moving to another interface, and again when finished; then reboot.

  • Add New Interface – configure an eth0 or wlan0 interface even when the physical hardware is not yet present (e.g. configuring wlan0 for a BeagleBone before its Wi‑Fi adapter/cape is attached). A small dialog asks for the interface name — enter it exactly as the system will name it, such as wlan0 or eth1 — and the new interface then appears as its own tab to configure. (This is only visible with an Advanced or higher level setting in the UI tab.)

  • Create Persistent Name – when using more than one Wi-fi interface (Not common) and you need the adapters to keep their order, create persistent names.

Best practice: 1. Power down the device. 2. Ensure only the primary Wi-fi interface is installed. 3. Power up the device. 4. Plug in the USB Wi-fi adapter. 5. Configure wlan0 and wlan1. 6. Click Update Interface, then Create Persistent Name.

This saves the configurations so they load in the correct order.

Global Network Settings (Host & DNS)

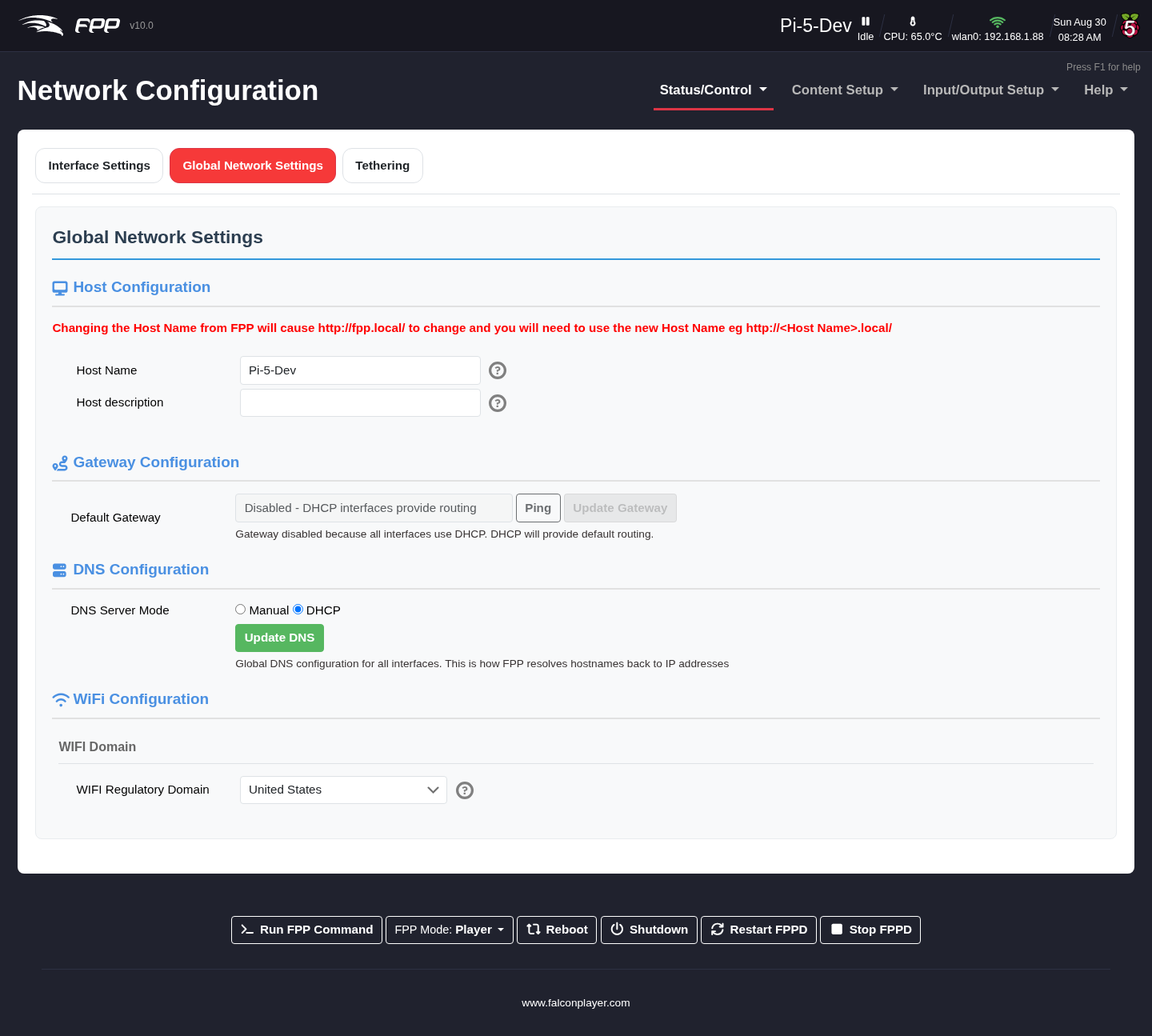

Network — Global Network Settings.

This tab assigns the device's host name and DNS settings.

  • Host Name – the "human" name used to reach the device (like typing a domain instead of an IP). If DNS or another part of your network is misconfigured the host name may not resolve, but you can still reach FPP by IP address. Choose something meaningful and unique among your devices — e.g. FPPMaster, FrontLawn, HouseOutline. Names may contain only letters, numbers and hyphens (-), may not begin or end with a hyphen, and cannot contain spaces. After changing it you can no longer use http://fpp.local/; use the new name (e.g. http://YardProps.local/) or the IP address. Save after entering it.

Keeping the default FPP is possible if you will never add another instance, but renaming is strongly recommended — shows tend to grow, and duplicate names cause confusion.

  • Host Description – additional, free‑form text (no host‑name restrictions) shown on the MultiSync page and the xLights FPP Connect screen.
  • Default Gateway – You will typically set this to your router's IP address.
  • DNS servers – with any static interface, set DNS to Manual and enter servers; typically your router's IP for one and an internet server such as 8.8.8.8 for the other.
  • Wi‑Fi Regulatory Domain – enter your country. Some jurisdictions have regulations, and Wi‑Fi will not work correctly unless this is set correctly.

Tethering

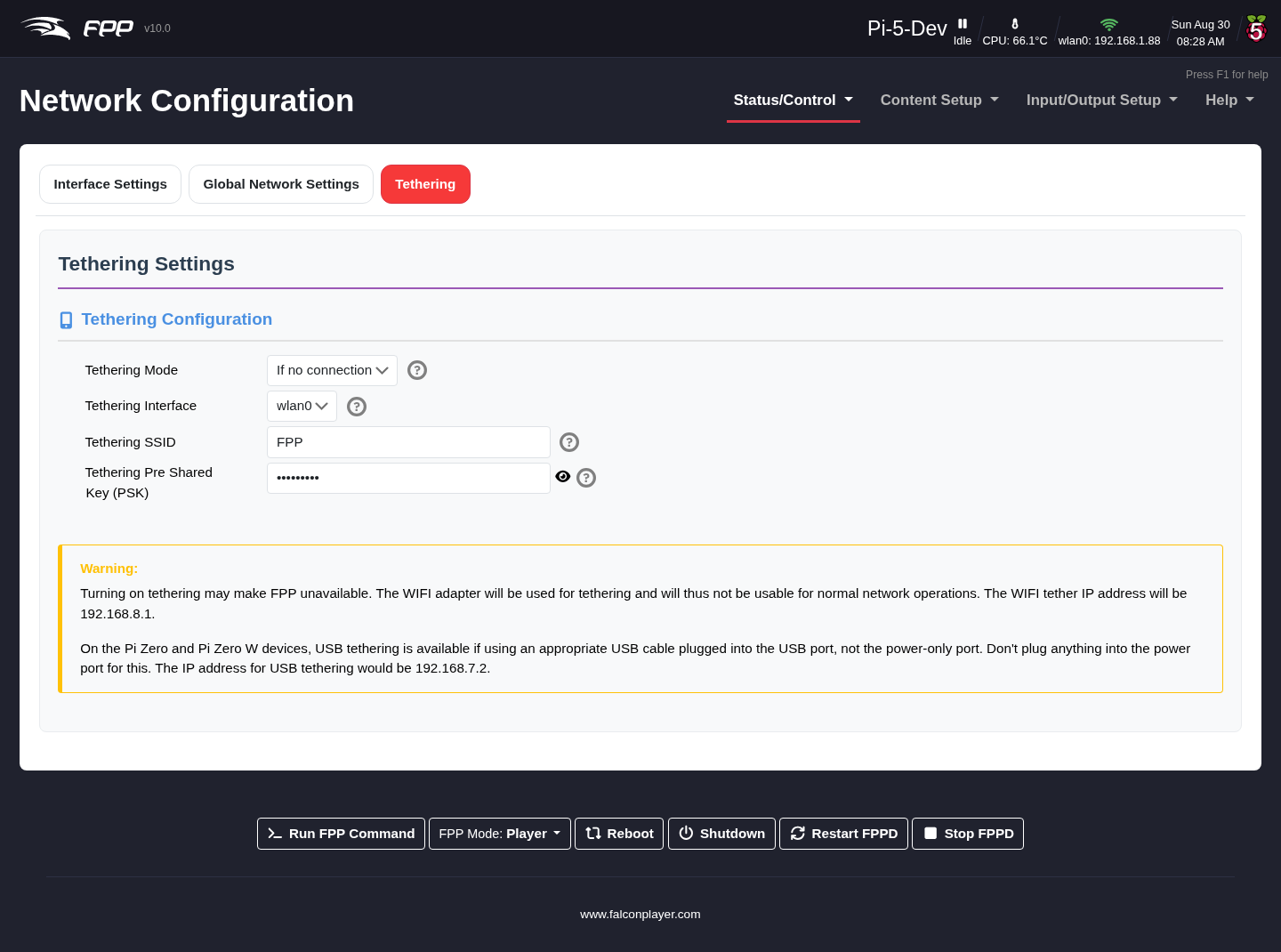

Network — Tethering.

FPP supports two kinds of tethering: Wi‑Fi Tethering, where FPP acts as its own access point, and USB Tethering, where FPP connects directly to a computer by USB cable.

Wi‑Fi Tethering

Note

Due to the number of various USB Wi-Fi adapters, the Wi-Fi Tethering might not work using some USB Wi-Fi adapters. Thay have to support AP mode. (this does not apply to the internal Wi-Fi adapters on the Raspberry Pis or BeagleBones).

Wi‑Fi Tethering lets you reach FPP when nothing is connected to the Ethernet or Wi‑Fi interfaces — especially useful on a Raspberry Pi whose on‑board Wi‑Fi supports AP mode (not all adapters do). Bring your computer near the device, connect to the FPP wireless network (password Christmas), and browse to 192.168.8.1.

Note

If the device has an OLED screen it will display a QR code you can scan to reach it.

There are three Wi‑Fi tethering modes:

  • If no connection (default) – FPP starts the FPP access point at boot only if it detects no network on any interface. (A device connected to an Ethernet port usually counts as a connection, so AP mode will not start.)
  • Enabled – FPP always starts the access point at boot.
  • Off – the access point is never started.

Note

It is not recommended to turn off the Wi-Fi tethering. This is a useful setting that can often time save you from reformatting your SD card if you mis-configure your network settings

Warning

If you set the Tethering to Enabled, the only way you will be able to connect to the Wi-Fi interface of your FPP would be through the FPP AP it will NOT conect to the configured wlan0 interface.

USB Tethering

Note

Only a few devices support USB Tethering: Raspberry Pi Zero W, BeagleBone Black, PocketBeagle, BeagleBone Green, and BeagleBone Green Gateway. (The PocketBeagle 2 does not support USB tethering.)

USB Tethering connects FPP directly to your computer with a USB cable, as described in Installing the FPP Software → USB Tethering Installation. It is often the easiest way to reach a device for setup, on the hardware that supports it.
