Channel Outputs

The Channel Outputs page configures how FPP outputs channel data to the controllers, hats and capes connected to it. Open Input/Output Setup → Channel Outputs. The available tabs depend on your SBC and any attached cape.

Set up your outputs to match the controller connected to FPP and the settings in your sequencing software. The output types are:

• E1.31 / ArtNet / DDP / KiNet – for controllers connected over Ethernet (or a switch). DDP is preferred where supported (e.g. Falcon and KulpLights controllers with recent firmware, ESP PixelStick). Output over Wi‑Fi is possible but not recommended.
• Pixel Strings (shown per cape, e.g. PiHat Pixel Strings, K8‑B) – WS281x pixels driven directly by a Pi hat or BeagleBone cape, or from the GPIO pins. FPP uses the attached cape's EEPROM to build the correct page; without a programmed EEPROM the section is blank and you must install a Virtual EEPROM (below). On a Pi 5 the pixel‑string type must be the DPI protocol.
• LED Panel Matrices – P10/P5 panels via a BeagleBone Octoscroller‑type cape, a Pi matrix hat, or a ColorLight card.
• DMX / Serial – DMX, Pixelnet and Renard over a USB/serial adapter.
• PWM – PWM outputs (servos, single‑colour dimming) on supported hardware.
• Control Signal – control/trigger signal outputs.
• Virtuals – virtual outputs such as the on‑screen 2D/3D virtual display.

Changed in v10

The Channel Outputs screen was redesigned. The old single Other tab (which held DMX, serial, control and virtual types together) has been removed, and those outputs now have their own dedicated tabs — DMX/Serial, PWM, Control Signal and Virtuals — shown according to your platform and UI Level.

Use Add Output Group to combine outputs so several are treated as one.

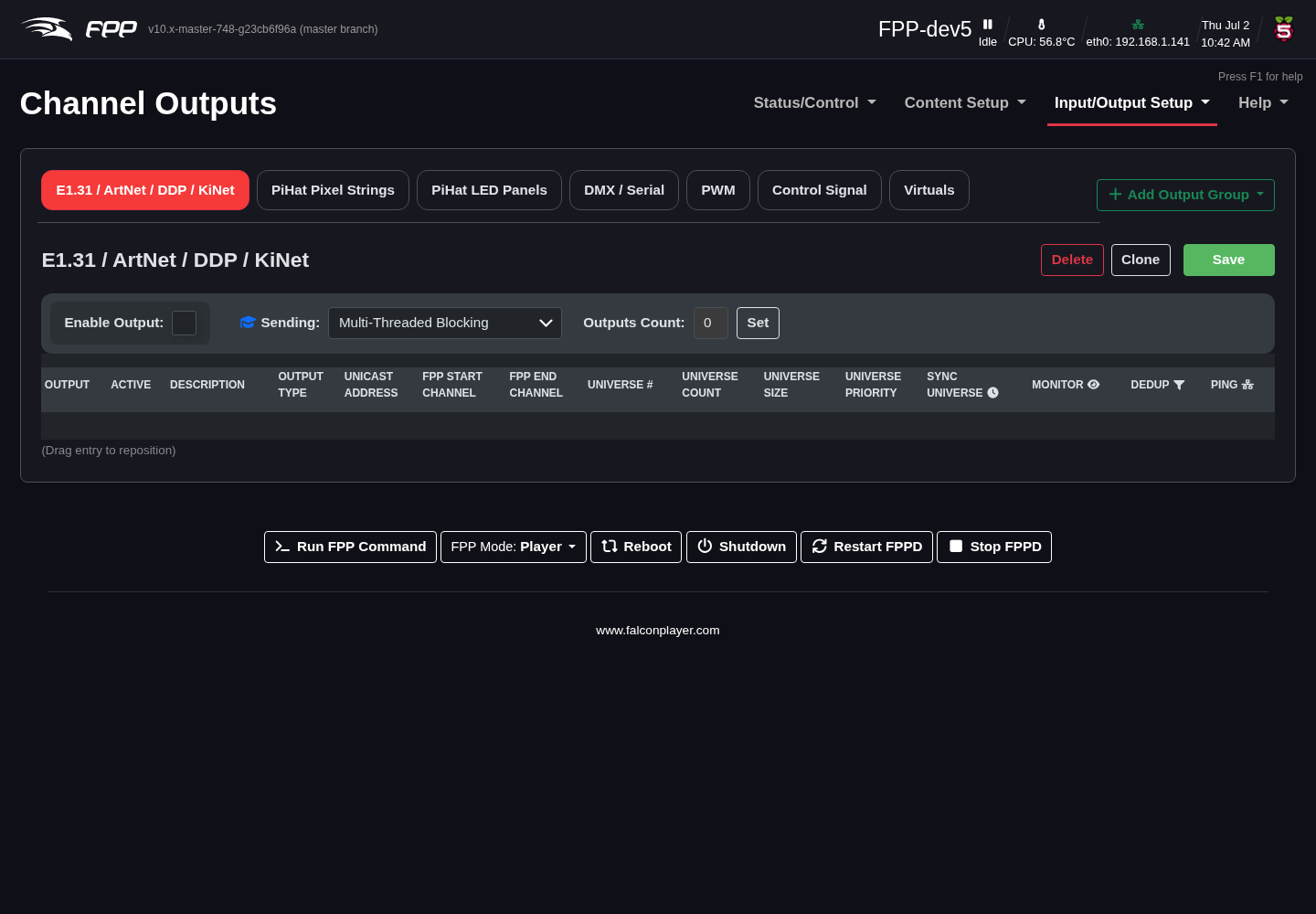

E1.31 / ArtNet / DDP / KiNet

Note

You only need to enable/configure these outputs if this device sends pixel data to external devices over the network. It does not apply to locally attached hats/capes or serial DMX ports.

Your universes, FPP start channels and sizes must match your sequencer and controller. Using FPP Connect in xLights (the UDP option under Tools) to upload the configuration is the recommended method, as it avoids typing errors.

Warning

If you do not intend to send E1.31/ArtNet/DDP data but select the UDP option in FPP Connect, it will configure and activate these outputs, which can cause lag/stutter and unexpected results.

• Enable Output – enable network output.
• Sending – the send strategy (Advanced):
  • Multi‑Threaded Blocking (default) – multiple threads; send a packet and wait for acknowledgement before the next. Uses FPP's multi‑threading for better performance.
  • Single‑Threaded Blocking – one thread, wait for acknowledgement.
  • Multi‑Threaded Non‑Blocking – multiple threads, send the next packet as soon as it is ready.
  • Single‑Threaded Non‑Blocking – one thread, send as soon as ready.
• Outputs Count – the number of output rows, typically one per controller (even when a controller uses several universes). Click Set to create the rows.
• Set / Save / Clone / Delete – create the rows, save, copy a row to those below it, or delete a row.

For each output row:

• Active – transmit this line's universes (activate only the outputs you actually need).
• Description – identify the controller.
• Output Type – how the data is sent: DDP (recommended where supported), E1.31 Multicast, E1.31 Unicast (more efficient — prefer Unicast for E1.31), or ArtNet. DDP is normally Raw Channel numbers; DDP‑One Based makes each controller start at channel 1 (you must then configure those devices to match).
• Unicast Address – for Unicast or DDP, the target device's IP.
• FPP Start Channel – the absolute channel configured in your sequencer for this range.
• FPP End Channel – calculated, to help verify your entry.
• Universe #, Universe Count, Universe Size – the starting universe, how many universes on this line (multiple per line is recommended), and channels per universe (commonly 512 or 510 — keep it consistent across your show).
• Universe Priority – priority for the E1.31 packets when more than one source targets a device.

Pixel Strings

The Pixel Strings tab (named for the detected cape) configures WS281x pixels wired to the hat/cape or GPIO. Common controls:

• Enable (Cape Type) – enable the pixel‑string output (untick to disable without losing the configuration).
• Cape Config – the cape type from the EEPROM (some, like the K16, offer expansion‑board and serial options).
• Testing – output test patterns (stays active until turned off): Port Number (white pixels at the start of each string indicate its port), Pixel Count by Port, Pixel Count by String, and Red/Green/Blue/White Fade.
• Pixel Timing – normal ws281x or the slower 1903 protocol (BeagleBone only).
• Clone String – copy a string's settings to others, advancing the start channel.

Per port:

• Port – the hat's output port; click + to add a virtual string to a port (for different daisy‑chained models needing individual adjustment).
• Description – a label for the port.
• Start Channel – matches the start channel in your sequencer (highlighted orange if there may be an error — hover for details).
• Pixel Count – pixels on the port (red if it exceeds the port's capacity).
• Press F2 to auto set – fills the next row's start channel for contiguous ports.
• Group Count – group pixels that always display identically.
• End Channel – the ending channel (calculated).
• Direction – Reverse feeds data as if from the end of the string.
• Color Order – match your pixels' colour order.
• Start Nulls / End Nulls – number of null nodes used to boost transmission distance at each end.
• Zig Zag – for props like a mega‑tree where one string feeds several strands; enter how many times the string changes direction. Do not use this if you set Strands/String in your sequencer.
• Brightness – lower brightness can look better on dense props and reduces power draw.
• Gamma – correction for the non‑linear way we perceive brightness, and to match pixels from different vendors.

Configuring the Virtual EEPROM

From FPP 6 onward, the advanced pixel output protocols require an EEPROM. If your hat/cape has none, configure a Virtual EEPROM, choosing the type for your output. Examples:

• PiHat – two ports (two GPIO pins):
  • PiHat – uses the same PWM as the on‑board audio, so on‑board audio is disabled (a USB audio card still works).
  • PiHat (DPIPixels – allows onboard audio) – keeps on‑board audio; limited to 50 pixels per port without a licence.
• DPIPixels‑24 – up to 24 ports without disabling on‑board audio; 50 pixels per port without a licence.
• rPi‑28D / rPi‑MFC – Hanson Electronics boards.
• F16‑B / F32‑B / F4‑B / F8‑B / F8‑Bv2 / F8‑PB – Falcon/Kulp DIY boards.
• RGB‑123 / PB‑16 / PocketScroller / Spixel – various boards (Spixel drives 16 strings of APA102/LPD6803/LPD8806 directly from the Pi GPIO).

Some types offer additional board‑specific options — get the correct EEPROM and board type from your vendor. If a Virtual EEPROM needs a licence for its advanced features, a blue banner explains this; the Cape Info link opens the Cape Info page with more detail and a link to obtain the licence (see Pixel Port Licensing).

Screenshots pending — cape hardware required

Full captures of the Pixel Strings tab need the relevant cape fitted so the ports are shown; these will be added from a cape‑enabled system.

LED Panel Matrices

Configures LED panels (P10/P5 are most common), driven by a ColorLight card or a connected hat/cape. One FPP device can control multiple drivers; the practical limit depends on matrix size and the SBC's single‑core speed, so test for performance.

Note

For any output beyond a hat/cape you need a dedicated Ethernet port for each ColorLight receiver.

Click Add Panel Matrix and choose Hat/Cape or ColorLight (one Hat/Cape matrix, but multiple ColorLight panels). There are three settings screens — BeagleBone Hat/Cape, ColorLight, and Pi Hat/Cape. Common settings:

• Enable LED Panels – enable panel output.
• Interface – for ColorLight, the dedicated Ethernet port for that receiver.
• Matrix Name – names each matrix (shown on its Panel Tab).
• Panel Layout (WxH) – number of panels wide × high.
• Single Panel Size (WxH) – pixel size and scan rate of each panel (P10 = 32×16, P5 = 64×32).
• Model Start Corner – typically Top Left for xLights, Bottom Left for Vixen (match your sequencer).
• Panel Gamma / Brightness – gamma correction and overall brightness.
• Panel Interleave – for panels using non‑standard data transmission.
• Color Depth – number of colours; reduce to minimise flicker on large sets (Hat/Cape only; ColorLight uses LEDVision for this).
• Panel Row Address Type / LED Panel Type – for panels with different row addressing or specialty panels (Pi Hat/Cape only).
• Start Channel / Channel Count – the panel array's absolute start channel and total channels.

Screenshots pending — cape hardware required

DMX / Serial, PWM, Control Signal and Virtuals

In the redesigned v10 screen these output types each have their own tab (they were previously combined in a single Other tab, which no longer exists):

• DMX / Serial – DMX Pro, LOR, Renard and Pixelnet over a USB/serial adapter. Select the serial device and protocol and map the channel range to it.
• PWM – map channels to PWM pins/outputs (hardware dependent), e.g. for servos or single‑colour dimming.
• Control Signal – configure control/trigger signal outputs.
• Virtuals – virtual outputs such as the 2D/3D on‑screen virtual display. Enabling HTTP Virtual Display 3D here is what activates the new browser‑based 3D preview — see the 3D Virtual Display chapter.

After any change, click Save and, when prompted, Restart FPPD.
