General Overview and Navigation

General Overview

The developers have built in several aids to explain the functionality of different settings. Most settings load based on the device FPP is running on, so you only see what is relevant and things are less confusing. FPP also has different UI Levels so that more advanced settings and functions do not clutter the screens (see FPP Settings → UI).

Many settings have a Help popup, identified by a blue question‑mark icon. Hovering over the question mark brings up additional information specific to that item.

Program Settings and Navigation

The following chapters explain each program area and its settings, and how they work. Depending on your setup or FPP version, the screens may look slightly different.

The main page is reached from a web browser by entering the IP address or host name of the device you set up — for example 192.168.1.101 or http://YardPi.local/ (yours will differ).

At the top of every page is a status/navigation bar:

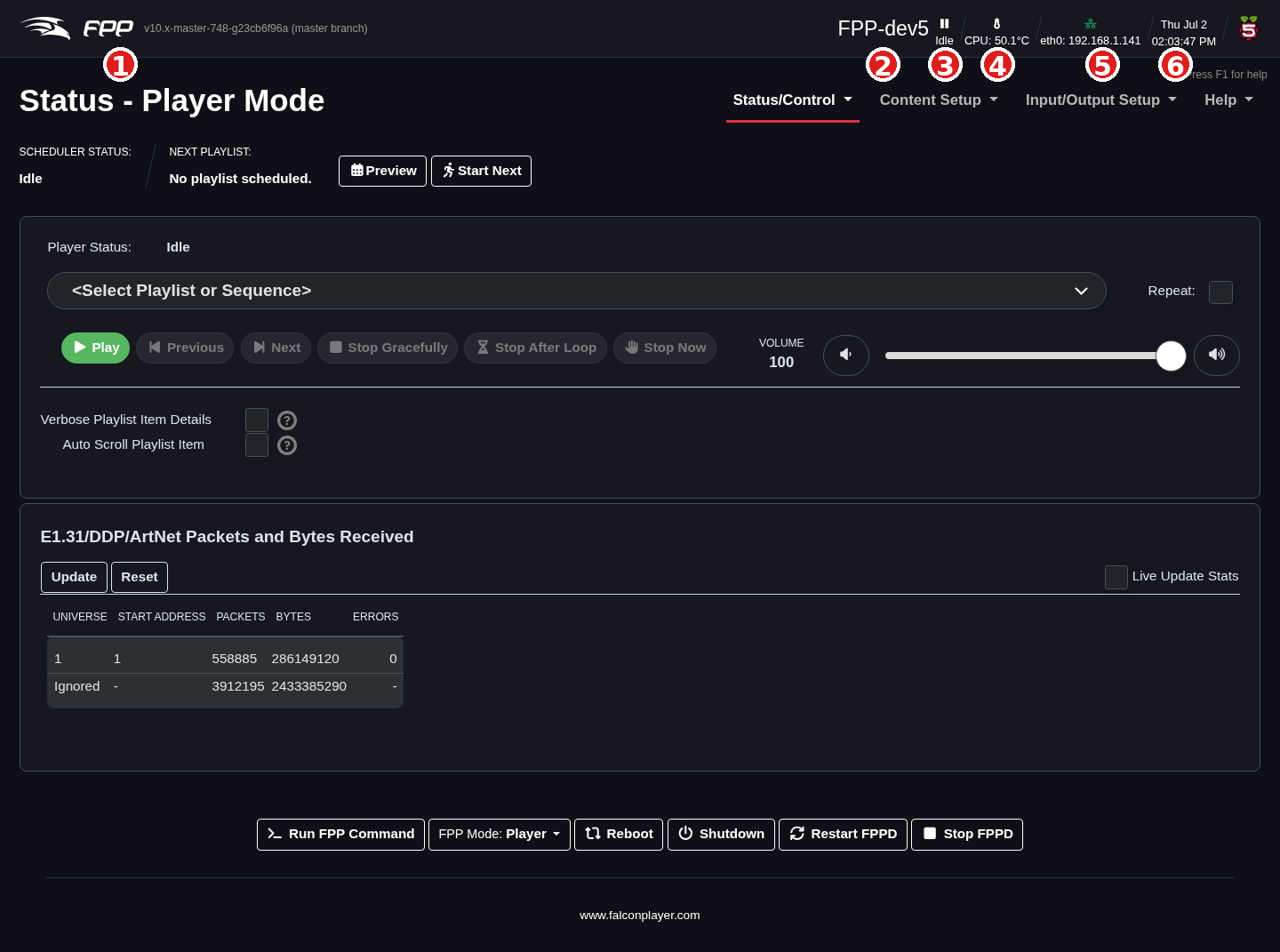

The header and navigation bar (Status page shown).

  1. FPP version – the current version is shown, and links to the System Upgrade (About) page to check for updates.
  2. Host name – this device's host name; it can be used to reach the device (e.g. http://FPP-K8PB-Test.local/) and links to the Host & DNS Settings page. (Not all networks support host‑name access.)
  3. Player status – the current state. Idle when nothing is playing; Playing (hover to see the current sequence); or a Stopped icon when FPP is stopped.
  4. Sensors – if the device has sensors, their readings appear here. Change the units under FPP Settings → Localization. With more than one sensor, click to toggle between them.
  5. Network interfaces – a graphical status of each interface; hover for details. For example: a. A live Ethernet connection with an IP address (this does not by itself guarantee the connection is valid). b. A DHCP Ethernet connection that received no address and gave itself a link‑local address (e.g. 169.254.x.x) — usually because it is connected to a controller or directly to a computer. c. A wlan0 connection with an IP address and signal strength (e.g. −57 dBm), also shown by the number of green bars. d. The device operating as a wireless access point.
  6. Date and time – the current system date and time.
  7. Platform graphic – the hardware platform and variant (Raspberry or Beagle).
  8. Vendor logo – may show your cape vendor's logo.
  9. Section indicator – which area of FPP you are in.
  10. Main navigation toolbar – on every page; clicking a heading reveals the options for that category (each is covered in its own chapter).

In the upper‑right corner, Press F1 for help (or the F1 key) opens help specific to the current page.

Bottom control bar

At the bottom of every page are shortcuts to commonly used device functions:

  • Run FPP Command – opens a popup to run one of the pre‑programmed FPP Commands (see Commands, Effects and Testing).
  • FPP Mode – change the FPP mode (see below).
  • Reboot / Shutdown – restart or power down the device.
  • Restart FPPD – stop and restart the FPP daemon, reloading many configuration changes without a full reboot.
  • Stop FPPD – stop the FPP daemon.

FPP Mode

FPP runs in one of two primary modes:

  1. Player – used when this device runs the show itself and/or sends sequence data to other controllers. A player can communicate with other devices in two ways: a. Output E1.31/DDP/ArtNet to other controllers or FPP devices — sending the full pixel data frame by frame. Common on a wired network driving one or more controllers. This requires the appropriate Channel Outputs to be configured. b. Send MultiSync packets — used when you have more than one FPP device and want them synchronised via small sync packets. Each remote needs only a copy of the sequence (.fseq) files; the player holds the playlists and schedules.
  2. Remote – used to synchronise this device (and its attached controller or cape) to a player, in one of two ways: a. MultiSync — the remote listens for MultiSync packets from a player and syncs its output to match. The remote needs a copy of every sequence (.fseq) that will be played (see the MultiSync chapter). b. E1.31/DDP/ArtNet — the remote receives streamed data instead; this requires the input to be configured (see Channel Inputs and Advanced Options → Separate Show Network).

Update indicators

  • A minor upgrade (same development branch) shows an orange icon in the header; click it to go to System Upgrade and update.
  • A major upgrade (new branch) shows an orange bar offering the upgrade; clicking the button takes you to System Upgrade.
